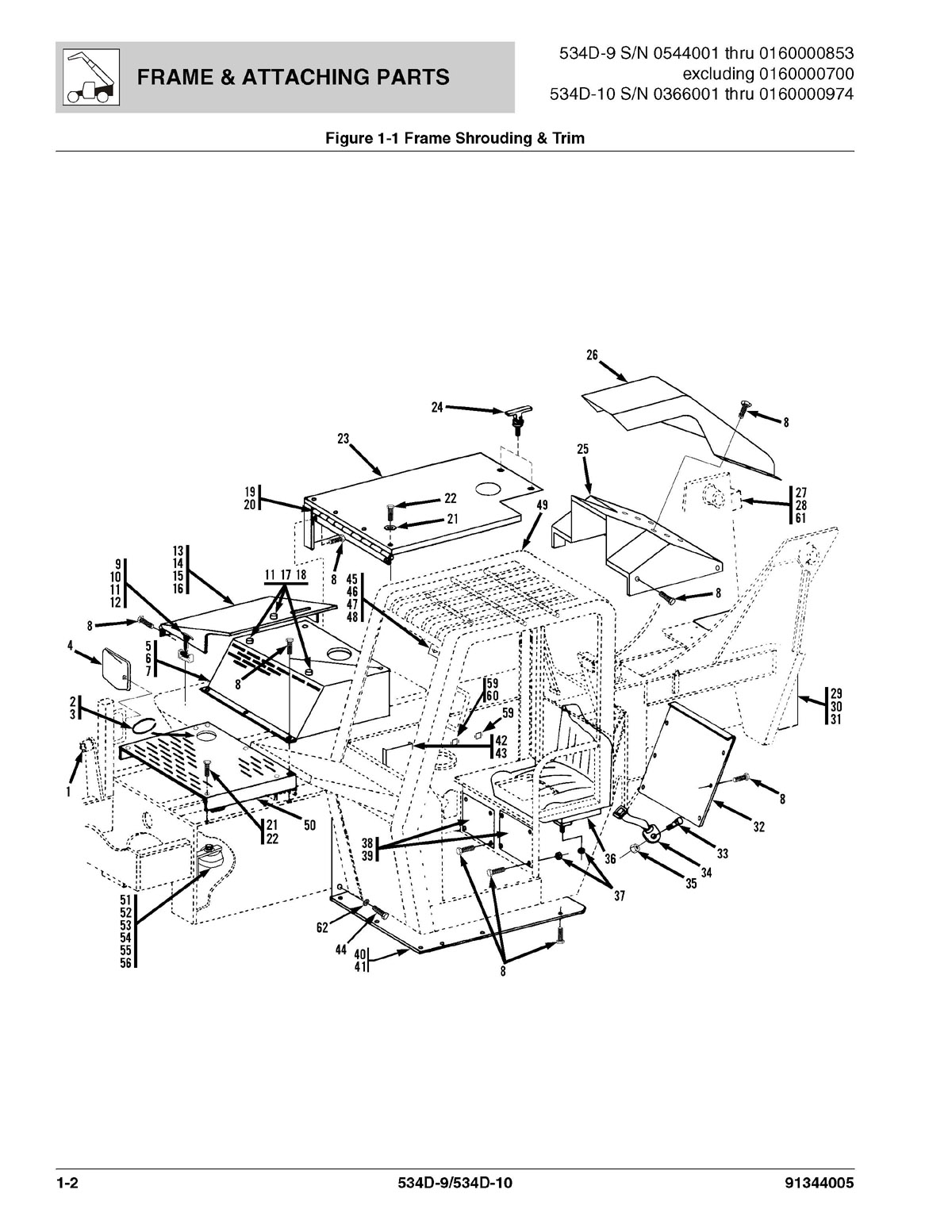

| | FRAME WELDMENT, D-9 (Ref.) | | | |
| 91143357 | HORN ASSY, (includes items 51 & 52) | 1 | | $17.00 |
| | T-9 METAL PROTECTANT OPTIONS: | | | |
| GRD-14404645 | T-9 METAL PROTECTANT, (12oz.) | 1 | | $15.21 |
| GRD-14404646 | T-9 METAL PROTECTANT, (1gal.) | 1 | | $106.87 |
| 1 | 91163014 | BUSHING | 1 | | $42.25 |
| 2 | GRD-90206194 | TRIM-LOK | 61 | | $1.39 |
| 3 | GRD-14402248 | ADHESIVE | 1 | | $63.08 |
| 4 | GRD-83683291 | MIRROR | 1 | | $27.61 |
| 5 | GRD-91366003 | RADIATOR COVER | 1 | | $891.74 |
| 6 | GRD-91143346 | RUBBER AIR DAM | 1 | | $38.57 |
| 7 | GRD-90200755 | WEATHER STRIP | 24 | | $0.58 |
| 8 | 77143003 | WHIZ-LOCK SCREW, 5/16-18X5/8 | 50 | | $0.64 |
| 9 | GRD-90207458 | DRAW LATCH | 2 | | $6.90 |
| 10 | 88301193 | ROUND HD MACHINE SCREW, #10-32X1/2 | 8 | | $0.65 |
| 11 | 88551007 | LOCKWASHER, #10 | 12 | | $0.65 |
| 12 | GRD-88501613 | HEX NUT, #10-32 | 4 | | $0.65 |
| 13 | GRD-91366004 | TANK COVER WELDMENT | 1 | | $323.09 |
| 14 | GRD-85211088 | RUBBER BUMPER | 2 | | $2.37 |
| 15 | GRD-88301077 | ROUND HD MACHINE SCREW, #8-32X1-1/4 | 2 | | $0.52 |
| 16 | GRD-88521604 | HEX LOCK NUT, #8-32 | 2 | | $0.64 |
| 17 | GRD-91083173 | RUBBER HD SCREW BUMPER | 4 | | $2.56 |
| 18 | 88501612 | HEX NUT, #10-24 | 4 | | $1.05 |
| 19 | GRD-91141218 | HINGE | 1 | | $64.33 |
| 20 | 91143348 | CLAMP BAR | 2 | | $1.70 |
| 21 | 88561003 | FLAT WASHER, 5/16 | 4 | QUOTE | |
| 22 | GRD-91123124 | WHIZ-LOCK SCREW, 5/16-18X1/2 | 4 | | $0.55 |
| 23 | GRD-91366005 | REAR ENGINE COVER | 1 | QUOTE | |
| 24 | GRD-91303021 | T-HANDLE | 2 | | $53.57 |
| 25 | GRD-91146050 | REAR COVER WELDMENT | 1 | | $234.63 |
| 26 | GRD-91366002 | REAR COVER CENTER | 1 | | $269.54 |
| 27 | 91403574 | BACK-UP ALARM | 1 | QUOTE | |
| 28 | 88201016 | HEX HD CAPSCREW, 5/16-18X1/2, GR5 | 2 | QUOTE | |
| 29 | 91140001 | COUNTERWEIGHT | 1 | | $3553.28 |
| 30 | GRD-88201143 | HEX HD CAPSCREW, 1-8X5, GR5, (torque to 545-595 ft.lbs.) | 4 | | $5.55 |
| 31 | GRD-88561011 | WASHER, 1” | 4 | QUOTE | |
| 32 | GRD-91141436 | REAR CAB COVER | 1 | | $199.13 |
| 33 | 88201050 | HEX HD CAPSCREW, 7/16-14X1, GR5 | 2 | | $0.64 |
| 34 | 91033029 | SEAT BELT, (not used with optional seat) | 1 | | $34.31 |
| 35 | GRD-88501007 | HEX NUT, 7/16-14 | 2 | | $8.89 |
| 36 | GRD-91033485 | SEAT W/ARMREST, (std.) | 1 | | $309.38 |
| GRD-91124107 | SLIDE ADJ. KIT, (use with std. seat) | 1 | | $55.86 |
| GRD-91043237 | GRAMMER SEAT, (opt.) | 1 | | $565.38 |
| 88201020 | HEX HD CAPSCREW, 5/16-18X1, GR5, (use with opt. seat) | 4 | | $0.62 |
| 37 | 77143006 | WHIZ- LOCK NUT, 5/16-18 | 8 | | $0.79 |
| 38 | GRD-91081475 | HEATER COVER PLATE | 1 | | $60.13 |
| 39 | GRD-91141329 | VALVE ACCESS COVER | 1 | | $32.00 |
| 40 | GRD-91361005 | BELLY PAN | 1 | | $274.56 |
| 41 | 91083533 | FENDER WASHER, 1-1/2, OD | 10 | | $0.62 |
| 42 | | MANUAL HOLDER OPTIONS: | | | |
| GRD-91033102 | MANUAL HOLDER | 1 | | $37.29 |
| 91403230 | MANUAL HOLDER, | 1 | | $13.79 |
| 43 | 77143013 | WHIZ -LOCK NUT, 1/4-20 | 4 | | $0.58 |
| 44 | GRD-83201158 | HEX HD CAPSCREW, 7/8-9X1-3/4, (torque to 450-475 ft.lbs.) | 4 | | $1.36 |
| 45 | 91033320 | TILT GAGE | 1 | QUOTE | |
| 46 | 88204912 | HEX HD CAPSCREW, 1/4-20X1 | 1 | QUOTE | |
| 47 | 88561107 | FLAT WASHER, 1/4 | 1 | QUOTE | |
| 48 | 88521204 | LOCK NUT, 1/4-20 | 1 | | $1.00 |
| 49 | | OPEN CAB, (seeFigure6-1for details) | | | |
| 50 | GRD-91361007 | DECK COVER | 1 | | $143.67 |
| 51 | GRD-91144438 | HORN | 1 | QUOTE | |
| 52 | GRD-91144439 | HORN BRACKET | 1 | QUOTE | |
| 53 | 86621230 | SUPPORT CLAMP, (3 used to hold quick start wiring) | 3 | | $1.31 |
| 54 | 77133177 | HEX HD CAPSCREW, 5/16-18X1-3/8, GR5 | 1 | | $0.64 |
| 55 | 77133168 | CLAMP SET | 1 | | $1.47 |
| 56 | 77133140 | COVER PLATE | 1 | | $0.78 |
| 57 | 77143006 | WHIZ -LOCK NUT, 5/16-18, (use with item 58, not shown) | 2 | | $0.79 |
| 58 | | HOSE GUARD OPTIONS: | | | |
| GRD-91366006 | HOSE GUARD, NOT SHOWN, (located under dash panel, beneath steering column) | 1 | QUOTE | |
| GRD-91363065 | HOSE GUARD, NOT SHOWN, (located under dash panel, beneath steering column) | 1 | | $79.03 |
| 59 | 88261014 | SOCKET BUTTON HD CAPSCREW, 1/4-20 X1/2 | 4 | | $1.10 |
| 60 | GRD-91146081 | DIP-STICK COVER | 1 | | $65.40 |
| 61 | 86683122 | TIEWRAP | 1 | | $0.58 |
| 62 | 77383118 | HARDENED WASHER, 7/8 | 4 | | $0.95 |
|
|
