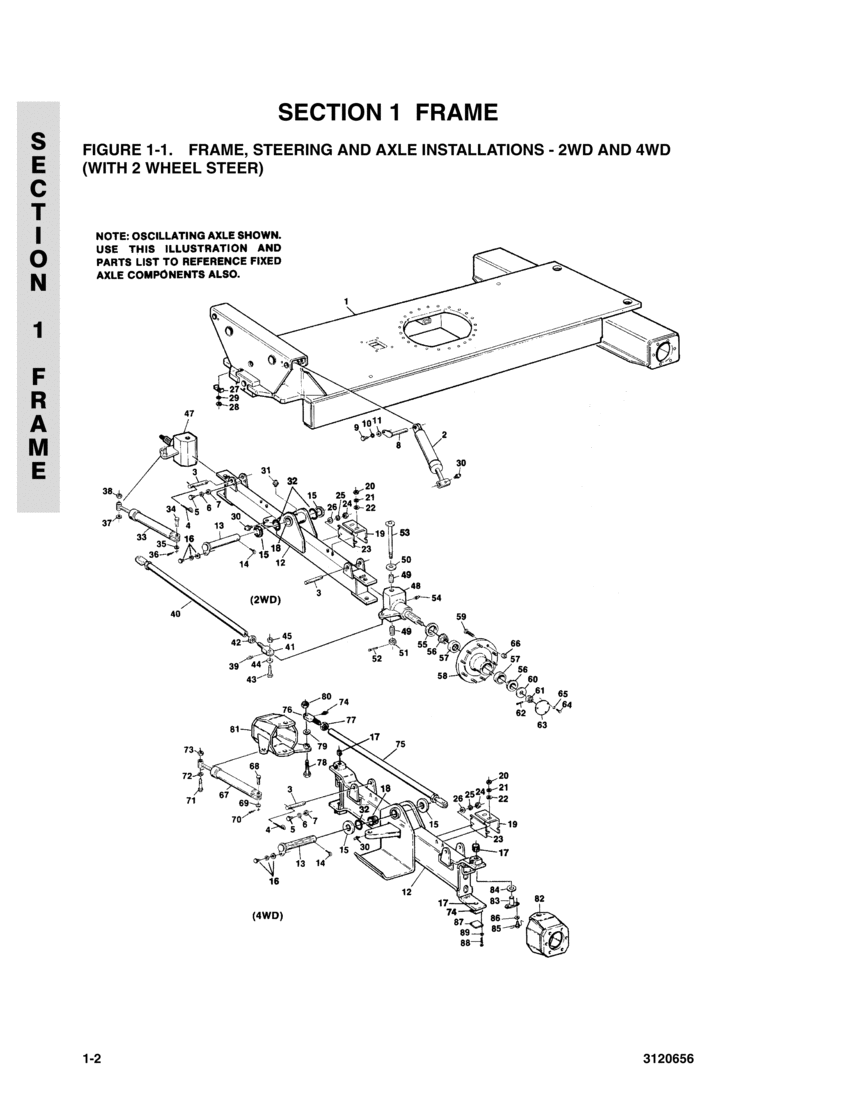

| | FRAME, STEERING AND AXLE INSTALLATIONS - 2WD AND 4WD (WITH 2 WHEEL STEER) (Ref.) | | | |
| 1 | | Frame Options: (Ref.) | | | |
| 2360287 | Frame (2WD Fixed Axle) | 1 | QUOTE | |
| 2360297 | Frame (2WD Oscillating Axle) | 1 | QUOTE | |
| 2360304 | Frame (2WD Fixed Axle) | 1 | QUOTE | |
| 2360311 | Frame (2WD Oscillating Axle) | 1 | QUOTE | |
| 2360312 | Frame (4WD Fixed Axle) | 1 | QUOTE | |
| 2360303 | Frame (4WD Oscillating Axle) | 1 | | $16350.85 |
| | OSCILLATING AXLE INSTALLATION - 2WD (OPTIONAL) (PRIOR TO Sep 1992) (Ref.) | | | |
| | OSCILLATING AXLE INSTALLATION - 2WD (OPTIONAL) (Sep 1992 TO PRESENT) (Ref.) | | | |
| | OSCILLATING AXLE INSTALLATION - STANDARD 4WD (OPTIONAL) (PRIOR TO Sep 1992) (Ref.) | | | |
| | OSCILLATING AXLE INSTALLATION - STANDARD 4WD (OPTIONAL) (Sep 1992 TO PRESENT) (Ref.) | | | |
| | OSCILLATING AXLE INSTALLATION - CSA 4WD (OPTIONAL) (PRIOR TO Sep 1992) (Ref.) | | | |
| | OSCILLATING AXLE INSTALLATION - CSA 4WD (OPTIONAL) (Sep 1992 TO PRESENT) (Ref.) | | | |
| 2 | | Lockout Cylinder Assembly Options (Ref.) | | | |
| 1681572 | CYL, LOCKOUT | 2 | | $1505.02 |
| 1682724 | CYL, AXLE LOCKOUT | 2 | | $1494.31 |
| 1681571 | CYL, LOCKOUT | 2 | | $1046.69 |
| 1682727 | 4WD (TUV) (Sep 1992 to Present) | 2 | | $1801.12 |
| 3 | 3421224 | Pin (Bottom) | 2 | | $68.38 |
| 4 | 3450808 | PIN COTTER .25 X 2.00 | 4 | | $0.08 |
| 5 | 0641406 | Bolt 1/4"-20NC x 3/4" | 2 | | $7.54 |
| 6 | 4761400 | Lockwasher 1/4" | 2 | | $4.64 |
| 7 | 4751400 | Flatwasher 1/4" | 2 | | $6.04 |
| 8 | 4843269 | WELD, PIN | 2 | | $130.53 |
| 9 | 0641508 | Bolt 5/16"-18NC x 1" | 2 | | $7.19 |
| 10 | 4761500 | Lockwasher 5/16" | 2 | | $4.31 |
| 11 | 4751500 | Flatwasher 5/16" | 2 | | $5.25 |
| 12 | 4842691 | Axle Weldment (2WD) | 1 | QUOTE | |
| 4842153 | Axle Weldment (4WD) | 1 | QUOTE | |
| 13 | 4843271 | WELD, PIN AXLE PIVOT | 1 | | $421.14 |
| 3421836 | Pin (CSA) | 1 | QUOTE | |
| 14 | 3450814 | PIN COTTER .25 X 3.50 | 1 | | $0.39 |
| 15 | 4740158 | WASHER,BRNZ 3.00X2.011 .25 | 2 | | $9.30 |
| 16 | 0641608 | Bolt 3/8"-16NC x 1" | 1 | | $7.87 |
| 4740185 | WASHER,STL. H .75X.415X.12 | 1 | | $2.47 |
| 17 | 0961029 | Bushing (Spindle Pivot Point) (4WD) (Prior to FEB 1994 to Present) | 4 | | $27.09 |
| 18 | 0961003 | Bushing (Axle Pivot Point) (Prior to FEB 1994) | 2 | | $166.74 |
| 0961771 | Bushing (Axle Pivot Point) (FEB 1994 to Present) | 2 | | $255.25 |
| 19 | 4220098 | STOP-AXLE | 2 | | $19.81 |
| 20 | 3311801 | Nut 1/2"-13NC | 4 | | $9.32 |
| 21 | 4761800 | Lockwasher 1/2" | 4 | | $6.16 |
| 22 | 4751800 | Flatwasher 1/2" | 4 | | $6.28 |
| 4300045 | STUD, -FULL THRDED 101-010-183 | 4 | | $2.16 |
| 23 | 4070528 | SHIM, -AXLE | 1 | | $14.45 |
| 4070800 | SHIM, .12 X 4.56 X 7.52 | 1 | | $7.51 |
| 24 | 3311601 | Nut 3/8"-16NC | 4 | | $5.04 |
| 25 | 4761800 | Lockwasher 12" | 4 | | $6.16 |
| 26 | 4751800 | Flatwasher | 4 | | $6.28 |
| 4300034 | STUD, WELD .38-16X1.00 | 4 | | $0.76 |
| 27 | 1320125 | CLAMP, HOSE STL: | 1 | | $88.77 |
| 28 | 3311601 | Nut 3/8"-16NC | 1 | | $5.04 |
| 29 | 4761600 | Lockwasher 3/8" | 1 | | $6.34 |
| 4300030 | STUD, WELD .38-16X1.50 | 1 | | $4.23 |
| 30 | 2160002 | FTG-GREASE, .13 PIPE STR | 3 | | $0.18 |
| 31 | 2160003 | FTG-GREASE, .13 PIPE 45 DEGREE | 1 | | $1.60 |
| 32 | 3780184 | O'RING, | 2 | | $0.31 |
| | STEERING AND SPINDLES INSTALLATION (STANDARD 2WD) (Ref.) | | | |
| | STEERING AND SPINDLES INSTALLATION (CSA 2WD) (Ref.) | | | |
| 33 | 1681562 | Steer Cylinder Assembly | 1 | | $2107.47 |
| 34 | 3431622 | PIN CLEVIS 1.000 X 2.750 | 1 | | $8.97 |
| 35 | 4712600 | Flatwasher | 1 | | $10.89 |
| 36 | 3450606 | PIN COTTER .19 X 1.50 | 1 | | $0.08 |
| 37 | 0440091 | Washer, Thrust | 1 | | $2.95 |
| 38 | 3300175 | NUT-SPEC LOCK GR5 1.00-14UNC | 1 | | $2.75 |
| 39 | 2160003 | FTG-GREASE, .13 PIPE 45 DEGREE | 2 | | $1.60 |
| 40 | 3840863 | ROD, TIE 1.75 X1.00 X64.37 LG | 1 | | $523.67 |
| 41 | 0560714 | Block, Tie Rod (Left Side) | 1 | | $100.86 |
| 0560605 | Block, Tie Rod (Right Side) | 1 | | $122.88 |
| 42 | 3300229 | NUT-SPEC, L.H. JAM 1.25-12 GR2 | 1 | | $7.11 |
| 3323002 | NUT HEX,1.250-12 LOW HT | 1 | | $2.23 |
| 43 | 0630425 | Bolt, Special | 2 | | $9.08 |
| 44 | 0440091 | Washer, Thrust | 2 | | $2.95 |
| 45 | 3312601 | NUT HEX,1.000- 8 REG HT | 2 | | $0.88 |
| 0100011 | Loctite #242 | 1 | | $80.55 |
| 47 | 4130160 | SPINDLE, STEER(RH)TP-1301 | 1 | | $1366.56 |
| 48 | 4130161 | SPINDLE, STEER(LH)TP-1301 | 1 | | $1366.56 |
| 49 | 0960523 | Bushing, Bronze (Prior to FEB 1994) | 4 | | $26.10 |
| 0961778 | Bushing, Bronze (FEB 1994 to Present) | 4 | | $228.69 |
| 50 | 0440183 | Bearing, Thrust | 2 | | $15.30 |
| 51 | 3300208 | Nut, Slotted | 2 | QUOTE | |
| 3313403 | NUT HEX,1.500- 6 REG HT SLOT | 2 | | $5.59 |
| 52 | 3451012 | PIN COTTER .31 X 3.00 | 2 | | $0.26 |
| 53 | | Kingpin Options: (Ref.) | | | |
| 3421243 | PIN, KING 1.50 DIA X 9.62 | 2 | | $146.81 |
| 3421835 | PIN, KING WELDMENT | 2 | | $155.33 |
| 3422261 | PIN, KING (SPINDLE) | 2 | | $179.79 |
| 3780183 | O'RING, | 4 | | $0.19 |
| 54 | 2160002 | FTG-GREASE, .13 PIPE STR | 2 | | $0.18 |
| 4640812 | VALVE, RELIEF FITTING | 2 | | $4.44 |
| 55 | 3960098 | SEAL, | 2 | | $17.50 |
| 56 | 0440019 | Cone, Bearing | 4 | | $50.59 |
| 57 | 0440018 | Cup, Bearing | 4 | | $48.28 |
| 58 | 2780091 | Hub | 2 | QUOTE | |
| 59 | 0630137 | Stud, Wheel | 20 | | $14.21 |
| 60 | 4740016 | WASHER,STL 3.25X1.56X.38 | 2 | | $11.47 |
| 61 | 3323403 | NUT HEX,1.500-12 REG HT SLOT | 2 | | $10.86 |
| 3313403 | NUT HEX,1.500- 6 REG HT SLOT | 2 | | $5.59 |
| 62 | 3450810 | PIN COTTER .25 X 2.50 | 2 | | $0.14 |
| 3451012 | PIN COTTER .31 X 3.00 | 2 | | $0.26 |
| 63 | 1120032 | CAP, HUB 2/60F,80F,886,1500T | 2 | | $62.11 |
| 64 | 0721003 | Bolt #10-24NC x 3/8" | 6 | | $0.11 |
| 65 | 4761000 | Lockwasher #10 | 6 | | $5.54 |
| 66 | 3300012 | Nut, Wheel | 20 | | $7.15 |
| | STEERING AND SPINDLES INSTALLATION (STANDARD 4WD BUILT PRIOR TO FEB 1994) (Ref.) | | | |
| | STEERING AND SPINDLES INSTALLATION (ALL CSA 4WD AND STANDARD 4WD BUILT FEB 1994 TO PRESENT) (Ref.) | | | |
| 67 | 1681555 | CYL,STEER 60H 4WD 40H4WD | 1 | | $1239.32 |
| 68 | 3431622 | PIN CLEVIS 1.000 X 2.750 | 1 | | $8.97 |
| 69 | 4712600 | Flatwasher | 1 | | $10.89 |
| 70 | 3450606 | PIN COTTER .19 X 1.50 | 1 | | $0.08 |
| 71 | 0630369 | Bolt, Special | 1 | | $31.17 |
| 72 | 0440091 | Washer, Thrust | 1 | | $2.95 |
| 73 | 3312602 | NUT HEX,1.000- 8 LOW HT | 1 | | $0.90 |
| 0100011 | Loctite #242 | 1 | | $80.55 |
| 74 | 2160003 | FTG-GREASE, .13 PIPE 45 DEGREE | 6 | | $1.60 |
| 4640812 | VALVE, RELIEF FITTING | 4 | | $4.44 |
| 75 | 3841029 | ROD, TIE 1.75 X1.00X51.12 1026 | 1 | | $442.48 |
| 76 | 0560714 | Block, Tie Rod (Left Side) | 1 | | $100.86 |
| 0560605 | Block, Tie Rod (Right Side - Not Shown) | 1 | | $122.88 |
| 77 | 3300229 | NUT-SPEC, L.H. JAM 1.25-12 GR2 | 1 | | $7.11 |
| 3300023 | Nut, Jam (Right Side - Not Shown) | 1 | QUOTE | |
| 78 | 0642628 | Bolt 1"-9NC x 3 1/2" | 2 | | $2.42 |
| 79 | 0440091 | Washer, Thrust | 2 | | $2.95 |
| 80 | 3312601 | NUT HEX,1.000- 8 REG HT | 2 | | $0.88 |
| 0100011 | Loctite #242 | 1 | | $80.55 |
| 81 | 4130223 | SPINDLE, WELD(RH) TP-B102 | 1 | | $2648.11 |
| 82 | 4130224 | SPINDLE, WELD(LH) TP-B102 | 1 | | $2648.11 |
| 83 | 3422221 | PIN, KING ASSY | 4 | | $136.65 |
| 3421190 | PIN, 1.50 X 3.50 | 4 | | $65.97 |
| 3421833 | Kingpin (CSA Machines Built Prior to FEB 1994) | 4 | | $65.97 |
| | | | | |
| 84 | 0440161 | Bearing, Thrust | 4 | | $6.43 |
| 85 | 0630083 | Bolt, Special | 8 | | $2.32 |
| 86 | 4761600 | Lockwasher 3/8" | 8 | | $6.34 |
| 4920096 | WIRE,-SAFETY 400FT SPOOL 18GA. - - Per Foot | 1 | | $0.15 |
| 87 | 3530244 | PLATE, .12 X 3.00 X 3.00 STL | 4 | | $17.95 |
| 3536410 | PLATE, .12 X 3.00 X 3.00A569 | 4 | | $119.40 |
| 88 | 0641404 | Bolt 1/4"-20NC x 1/2" (Prior to Sep 1992) | 8 | | $5.00 |
| 2080026 | Tack (Sep 1992 to FEB 1994) | 8 | QUOTE | |
| 89 | 4761400 | Lockwasher 1/4" (Prior to Sep 1992) | 2 | | $4.64 |
|
|
